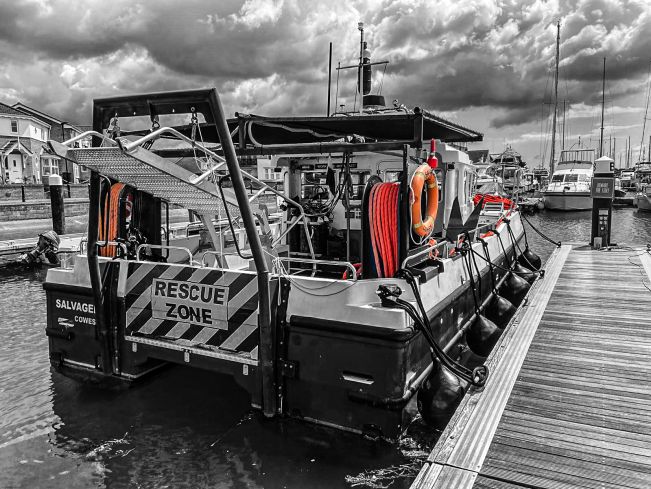

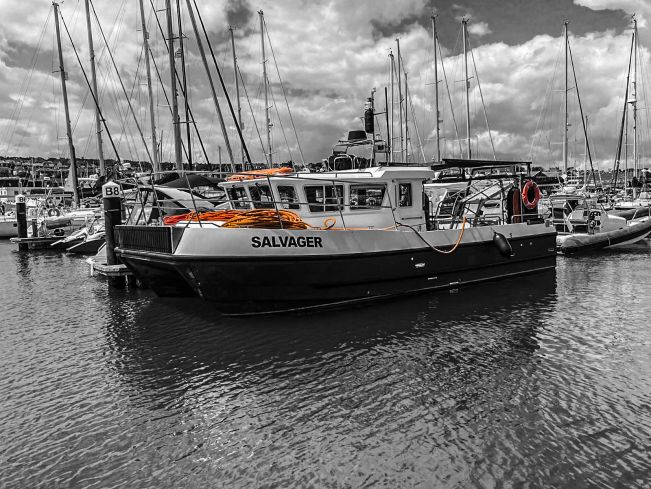

MV Salvager - dive support vessel
MV Salvager, our dive support vessel, coded up to 60nm offshore, full welfare facilities onboard. Plug and play, quick to mobilise and easy to manoeuvre with twin 6 cylinder diesel onboard engines.
Our vessels are all fully serviced and regulated with planned maintenance via our integrated management system. Our plant and equipment including our dive systems onboard are stripped/serviced and packed with an inventory ready for each and every job
Our skippers are all competent and qualified as Yacht master offshore with a commercial endorsement up-to 200 gross Tonnes.
A fully compliant tidy dive spread with purpose-built dive ladder, unconscious casualty recovery "A" frame, standby diver seats within a tidy umbilical rack, complete with everything needed to undertake a dive job, from helmets, compressor, de-fib, trauma medical kit, O2, spill kits, underwater camera and lighting units and a spares box to cover every possible eventuality.
Everything listed below has a home within the spread and it can be locked and left safely onsite.
Umbilical’s are connected and wrapped on purpose built racking for ease when tendering rather than spread over the deck. HP onboard diesel breathing compressor with x6 36 litre 300 Bar gas supply.
Specification:
- X6 36 Litre 300 Bar HP Cylinder breathing gas supply with Bullnose Valves
- Certified HP whips & CE marked whip checks
- 2 Diver HP/LP Control Panel
- X2 50 meter Cortland floating umbilical's, including camera and lights
- X2 bell Jackets and weights
- X2 Kirby Morgan 37
- X1 KMB 28
- C Vision camera system
- Cat C offshore medical kit, x10 man first aid kit, burns kit, eye wash
- De-fib
- 20 Litre Medical 02 Bibs
- Amron 111 coms back up unit
Panel:
There are 6 air supply inlets, 2 off LP and 4 off HP. There is also a crossover valve in order to allow air to pass from Diver 1 to Diver 2 if required and vice versa. The depth gauges are 100 mm dia with a range 0-70 metres (0-230 feet). The panel pressure gauges are 63 mm dia. The pressure gauges are dry filled.
- All the inlets and outlets are 3/8 & 1/4 NPT
- All LP valves are quarter turn ball valves and the HP valves are 1/4 inch needle valves
- The LP air supply has a max inlet working pressure of 21 bar
- HP air supply has a max inlet working pressure of 300 bar
- The basic outside dimensions are 460 mm H x 800 mm W x 290 mm D
- Inlets: HP ¼” NPT Female LP ⅜” NPT Female
- Outlets: Divers Supply ⅜” NPT Female
- Divers Pneumo ¼” NPT Female
